< Back to resultsD3DL010
| Type number | D3DL[Actuation]010[Spool position][Seal][Switching logic] |
|---|---|
| Manufacturer | Parker |

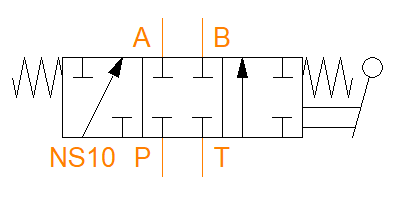

| Description | 4/3 Directional spool valve manually operated |
| Weight | 3.7 kg |
| Bolt height | 30 mm |
| Max pressure | 350 bar |
| Max flow | 130 l/min |
| Size | NS10;D05 |
